Laying pavers creates a beautiful and durable hardscape, but the foundation – the paver base – is critical to its longevity and aesthetic appeal. Improper excavation depth is a common culprit behind settling, uneven surfaces, and ultimately, costly repairs. Choosing the right depth isn't simply guesswork; it's a calculated process dependent on several factors, including soil type, anticipated load, and climate. This comprehensive guide will equip you with the knowledge to confidently determine the optimal excavation depth for your paver project, ensuring a long-lasting and aesthetically pleasing result.

Understanding the intricacies of paver base excavation is key to a successful project, saving you time, money, and frustration. This guide will walk you through a step-by-step process, clearly outlining each stage from initial site assessment to the final compaction of the base material. Prepare to learn how to accurately assess your site, select the appropriate base materials, and calculate the precise excavation depth for a flawless paving installation.

Preparation and Safety Guidelines

Tools Needed

String lines
Screed bars
Paver base panels (optional)

Safety Guidelines

Always check local building codes and regulations regarding minimum excavation depths for paving projects before starting any work. Requirements can vary based on location, soil type, and anticipated load.
Wear appropriate safety gear, including gloves, safety glasses, and sturdy footwear, during excavation. Be mindful of underground utilities (gas, electric, water, etc.) and call your local utility locator service before digging to prevent damage and injury.
Ensure proper slope and drainage are incorporated into the excavation to prevent water accumulation under the pavers, which can cause frost heave, settling, and premature paver failure.

Step-by-Step Instructions

Assess Project Requirements
- Determine excavation depth based on climate, soil type, and traffic.
- Northern climates with freeze-thaw cycles require deeper excavation (6-8 inches for patios/walkways, 12-14 inches for driveways).
- Weaker soils (clay) need more excavation than well-draining soils (sand).

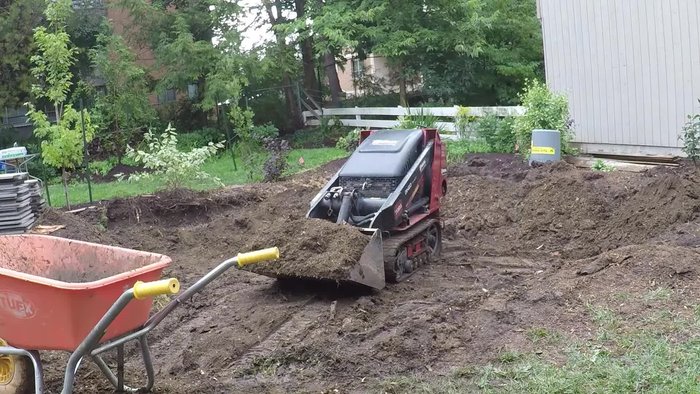

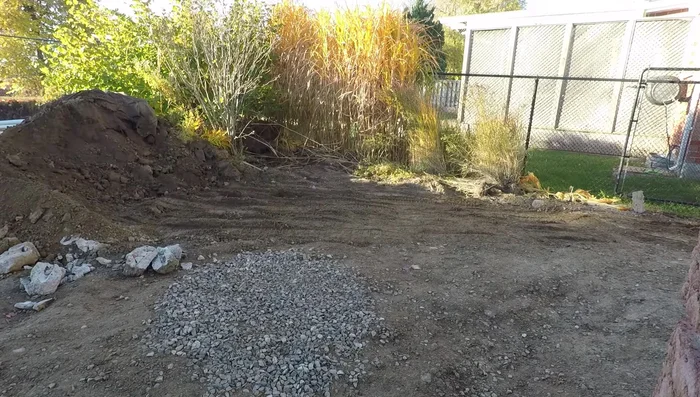

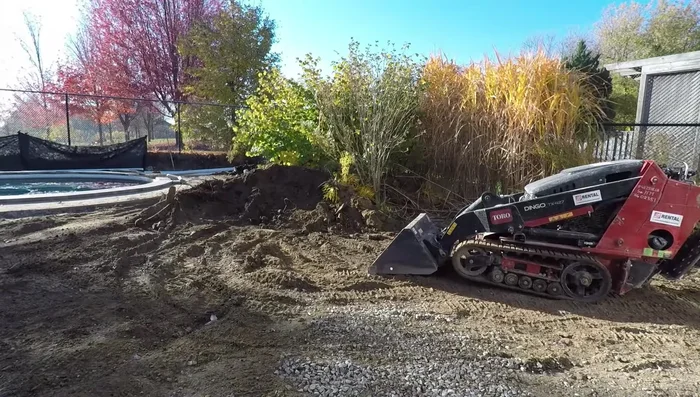

- Heavier traffic (driveways) requires significantly more excavation than pedestrian traffic (patios/walkways).
Assess Project Requirements

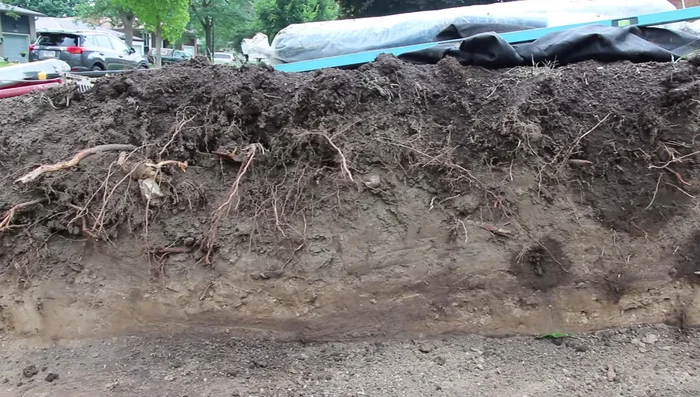

- Dig test holes to identify organic materials (roots, topsoil) and determine the depth to the foundational subsoil.
Assess Project Requirements
Calculate Total Depth

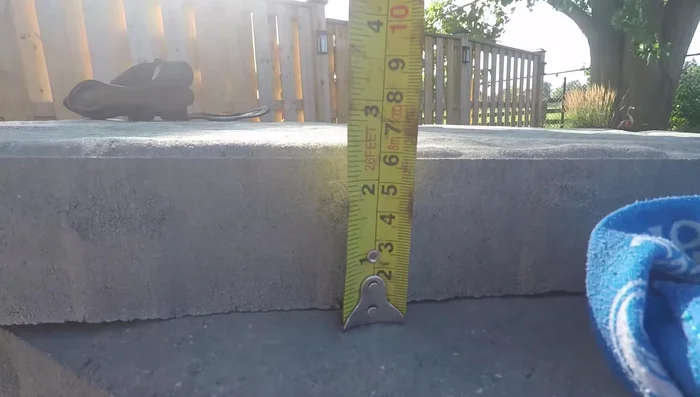

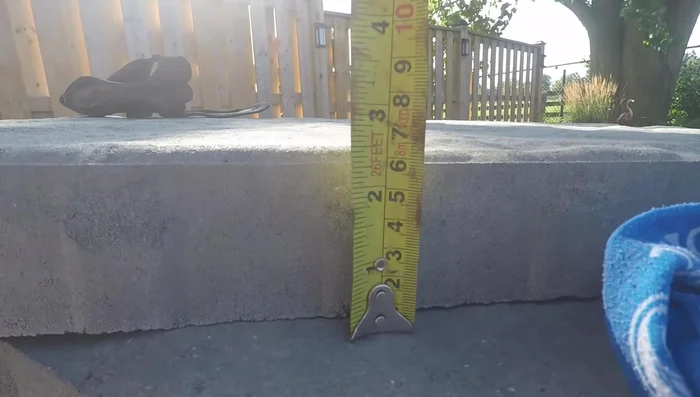

- Account for bedding layer (1 inch) and paver height (typically 2 3/8 inches).
- base depth + bedding layer + paver height.
Calculate Total Depth
Excavate and Prepare Subgrade
- Excavate beyond the final paver edge by the depth of your base to accommodate edging and prevent paver shifting.

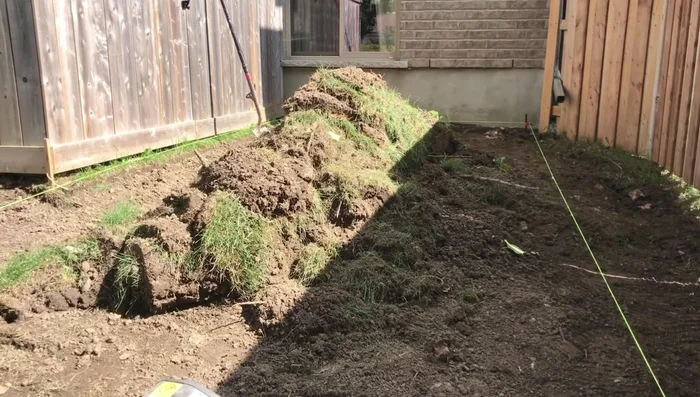

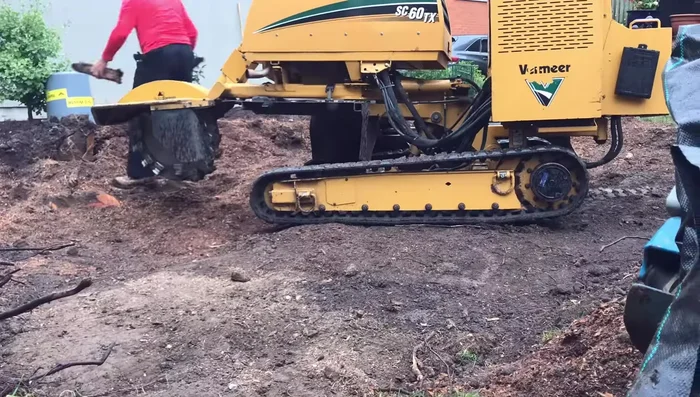

- Use string lines to ensure uniform subgrade and proper slope (1/8 inch to 1/4 inch per foot).
Excavate and Prepare Subgrade

Tips

Don't skimp on excavation; a proper base is crucial for longevity and drainage.
Consider using paver base panels to reduce excavation depth, especially for patios and walkways in areas without freeze-thaw cycles.

Common Mistakes to Avoid

1. Insufficient Excavation Depth

Reason: Using too shallow a base results in unstable pavers, settling, and cracking over time, especially in areas with frost heave or significant soil movement.

Solution: Excavate to the recommended depth, considering local soil conditions and frost depth.

2. Improper Compaction of the Base Material

Reason: Poorly compacted base material leads to uneven settling, creating dips and causing pavers to shift or crack. This weakens the overall structure and shortens the lifespan.

Solution: Compact the base material in layers using a suitable compactor to achieve the required density.

FAQs

How deep should I excavate for my paver base?

The ideal depth depends on several factors, including soil type, the paver thickness, and the anticipated load. Generally, a minimum of 4-6 inches is recommended, but for heavier loads or unstable soil, deeper excavation may be necessary. Consult local building codes and this guide for detailed calculations.

What happens if I don't excavate deep enough?

Insufficient excavation depth can lead to settling, uneven pavers, and potential cracking or damage. This will compromise the longevity of your paver installation and may require costly repairs. Proper depth ensures a stable and durable surface.
